Digitizing Chenille Objects

Posted by Lata Friday, June 5, 2009 Labels:
You can digitize chenille objects using a number of methods. You can digitize chenille manually by creating multiple objects, one for the fill and one or two for the border. Input A, B and C with Coil or Straight fill can be used for the fill and run borders are added separately either before or after the fill. Borders can also be added automatically using Complex Fill with Compound Chenille.


You can use both Moss and Chain stitch for outlines or fills. Moss can be stitched using different needle heights: lower for run around and higher for fill. In conjunction with Chain stitches, the design builds up in height from the edges to the middle. The Moss and Chain tools set the fill only. Offset runs can be individually set to Moss or Chain in the Compound Chenille
dialog.


Digitizing ES Chenille objects manually


Digitizing Chenille Objects

You can digitize objects manually using any input method, then adding a border To stitch single lines borders manually use Run with Chain or Moss. One or two offset run-arounds with Chain and Moss provide a clear edge for filled areas. You can also use Double Run and Backtrack for borders. Compound Chenille with Complex Fill can be used to add up to three offset borders automatically.


To digitize chenille objects manually

01. Choose a chenille stitch type.

  • Click Moss stitch for a looped stitch.
  • Click Chain stitch for a flat stitch.

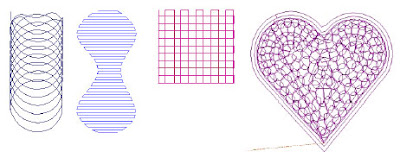

    • 02. Choose a chenille fill type.

  • Click Coil to fill curved columns or narrow shapes
  • Click Straight to fill shapes diagonally, or horizontally and vertically (similar to Tatami)
  • Click Perpendicular Fill to fill large shapes with two layers of straight lines
  • Click Island Coil stitch to fill large shapes with spiral stitches.


    • Digitizing Chenille Objects

    03. Select Input A, Input B or Input C or Complex Fill.
    04. Digitize the shape.


    Digitizing Chenille Objects

    05. Generate stitches.
    06. Now digitize a separate single line border around the object.
    07. Choose a chenille stitch type for the border.

  • Click Chain stitch for a flat stitch.
  • Click Moss stitch for a looped stitch.

    • 08. Choose an input tool for the border. You can also use Double Run and Backtrack for borders.
    09. Digitize the object outlines.
    10. Generate stitches.
    11. Do you need to group the objects??
